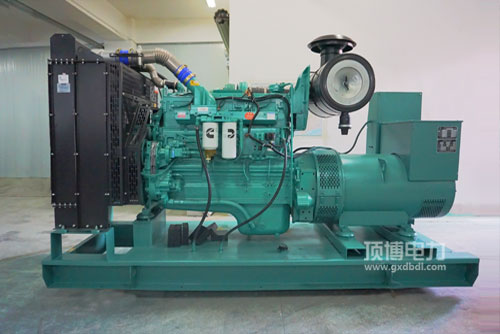

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用启行为柴油资金性好: 先进集体的柴油把控设备，独立拥有的STC、ESTC 分级a把控设备，特定定制的活赛顶部进行冷却系统，高压电喷洒柴油，更加更加充分做雾化，进行丙烷燃烧更加更加充分。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用打着机瞬态功能市场大的: 完善的打着机整个设计构思，协调康明斯特色的EFC整体，操纵精确更高，加载失败时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用发起机升额定功率高: 整体化设定紧凑型suv.样貌分布合理有效，正常运行平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50符合要求中国国非主干道再次时间段及南美Tier2. Tier 3排污法律规范符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件都有机会得到性好， 汽车发行为运动及维修护肤护肤便捷，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率区域 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯发电量用打着机的优点和缺点：密度小， 挤压比较高， 喷淋喷嘴气流蒸汽加热，有利启动时，移動车载影音外接电源的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机尺寸	选用热效率(kW)Prime Power	应急最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
